NDP1415RB is a high efficiency, monolithic synchronous step-down DC/DC converter utilizing a Jitter frequency, average current mode control architecture. Capable of driving up to 20A continuous load with excellent line and load regulation. The device operates from an input voltage range of 7V to 38V and provides an adjustable output voltage from 3.3V to 25V.
    The NDP1415RB features short circuit and thermal protection circuits to increase system reliability. The internal soft-start avoids input inrush current during startup.

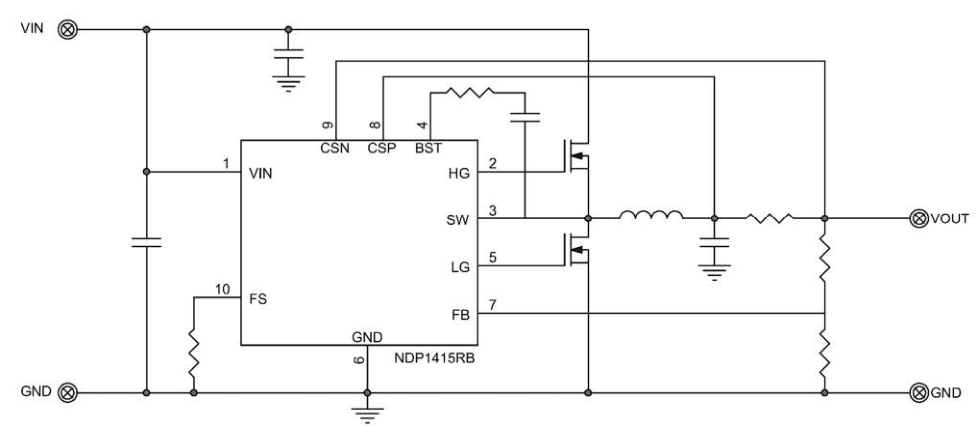

    The NDP1415RB require a minimum number of external components. and a wide array of protection features to enhance reliability.

※Wide VIN Range : 7V to 38V
※Up to 20A Output Current
※Up to 96% Efficiency @ 24V Input
※CC/CV Mode Control
※Brick Wall Current Limit
※Built in Adjustable Line-Compensation
※Adjustable Output Voltages
※+/-1.5% Output Voltage Accuracy
※+/- 6% Current Limit Accuracy
※Programable Frequency(130KHz~300KHz)
※Burst Mode Operation at Light Load
※Internal loop Compensation
※Internal Soft Start
※Thermally Enhanced SSOP10 Package

※Charger

※Rechargeable Portable Devices

※Networking Systems

※Distributed Power Systems
